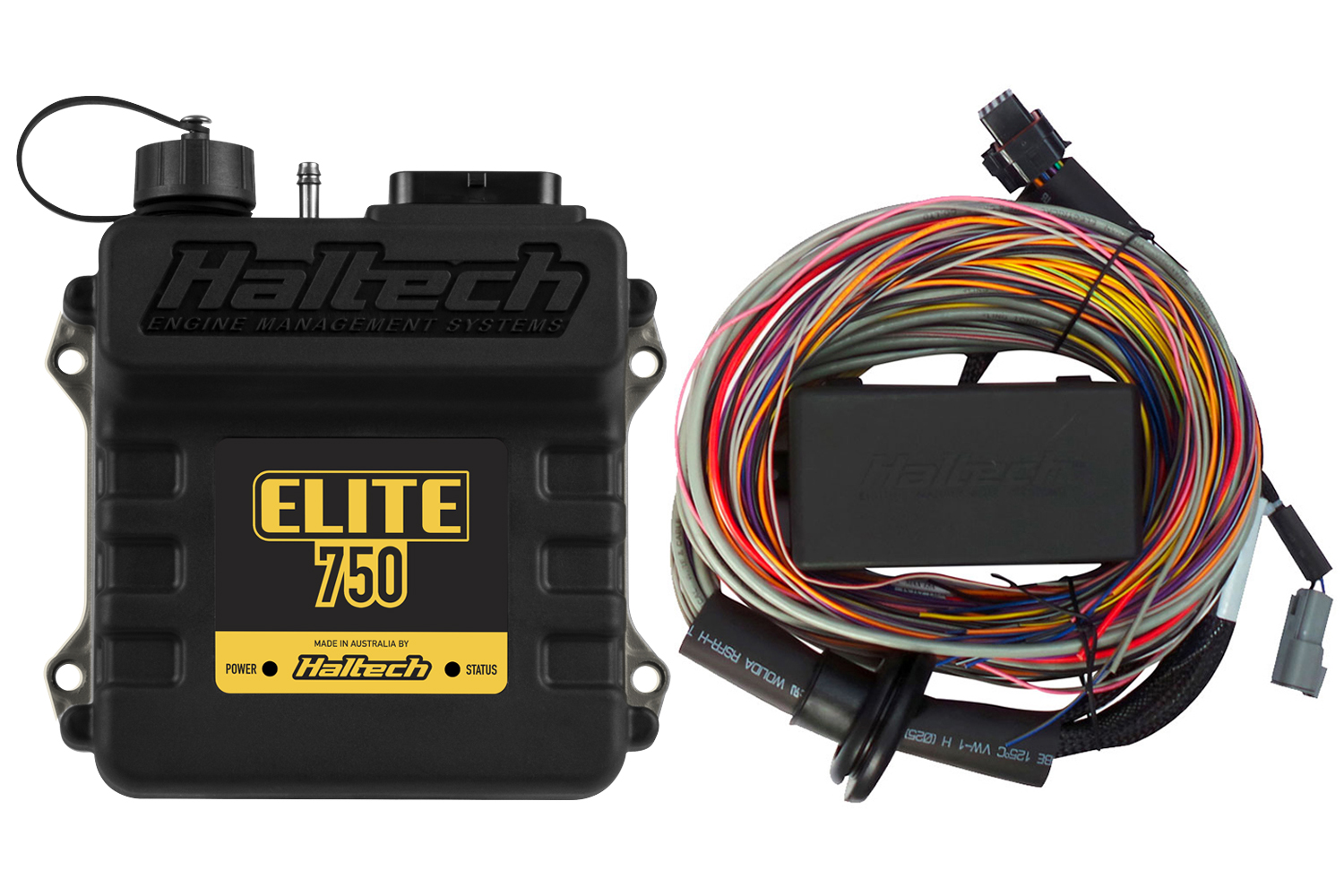

HALTECH Elite 750 + Premium Universal Wire In Harness Kit

Description

Ideal for dedicated race cars, engine swaps, and custom wiring jobs, the Universal Wire-in Harness by Haltech simplifies installation. It features ECU connectors at one end and unterminated wires at the other, all color-coded and labeled. Connect to your Haltech ECU, follow the wiring diagram, load your base map, and you’re ready to go. The detailed wiring diagram, ECU manual, and software are included on the CD or USB key for reference during installation and configuration.

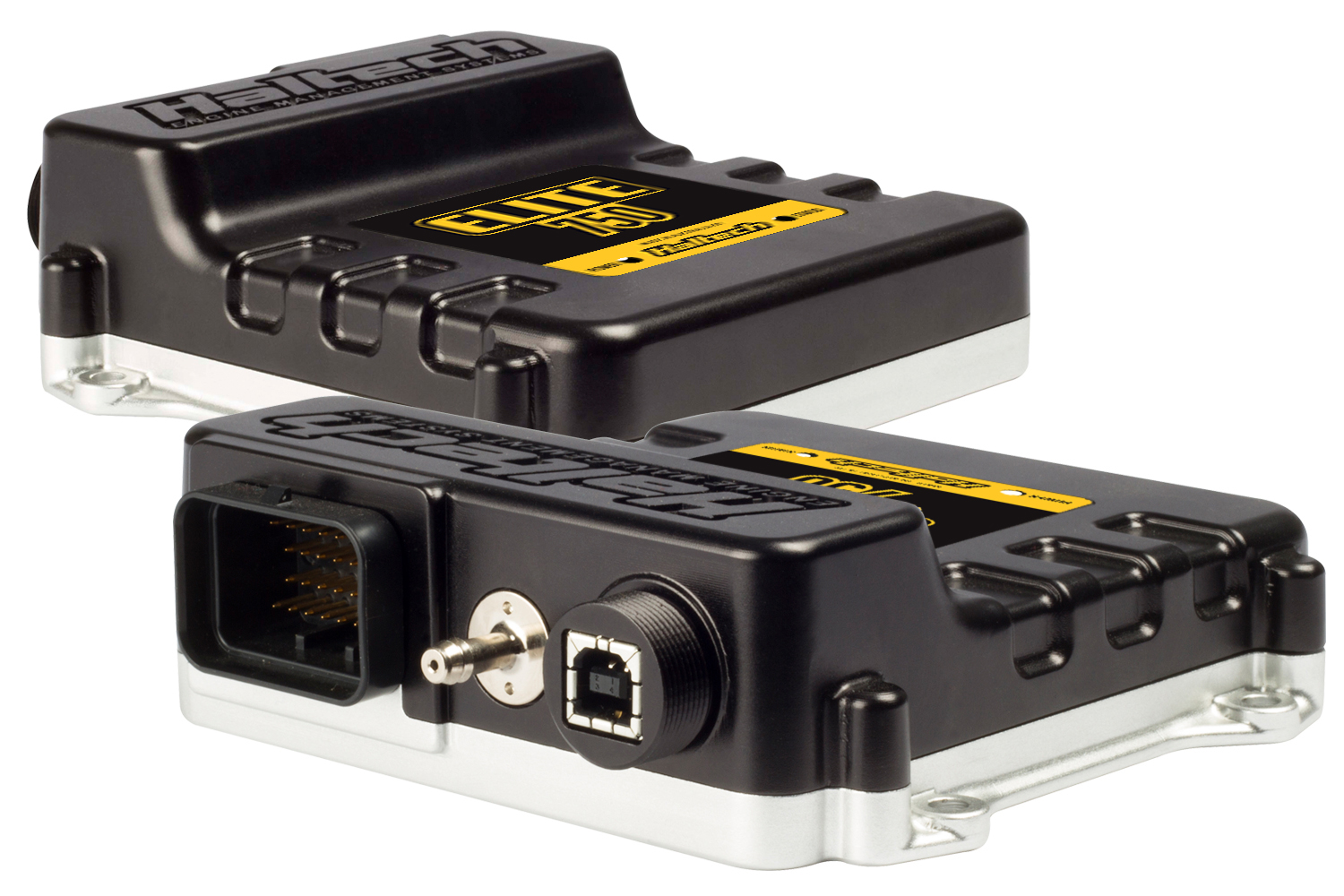

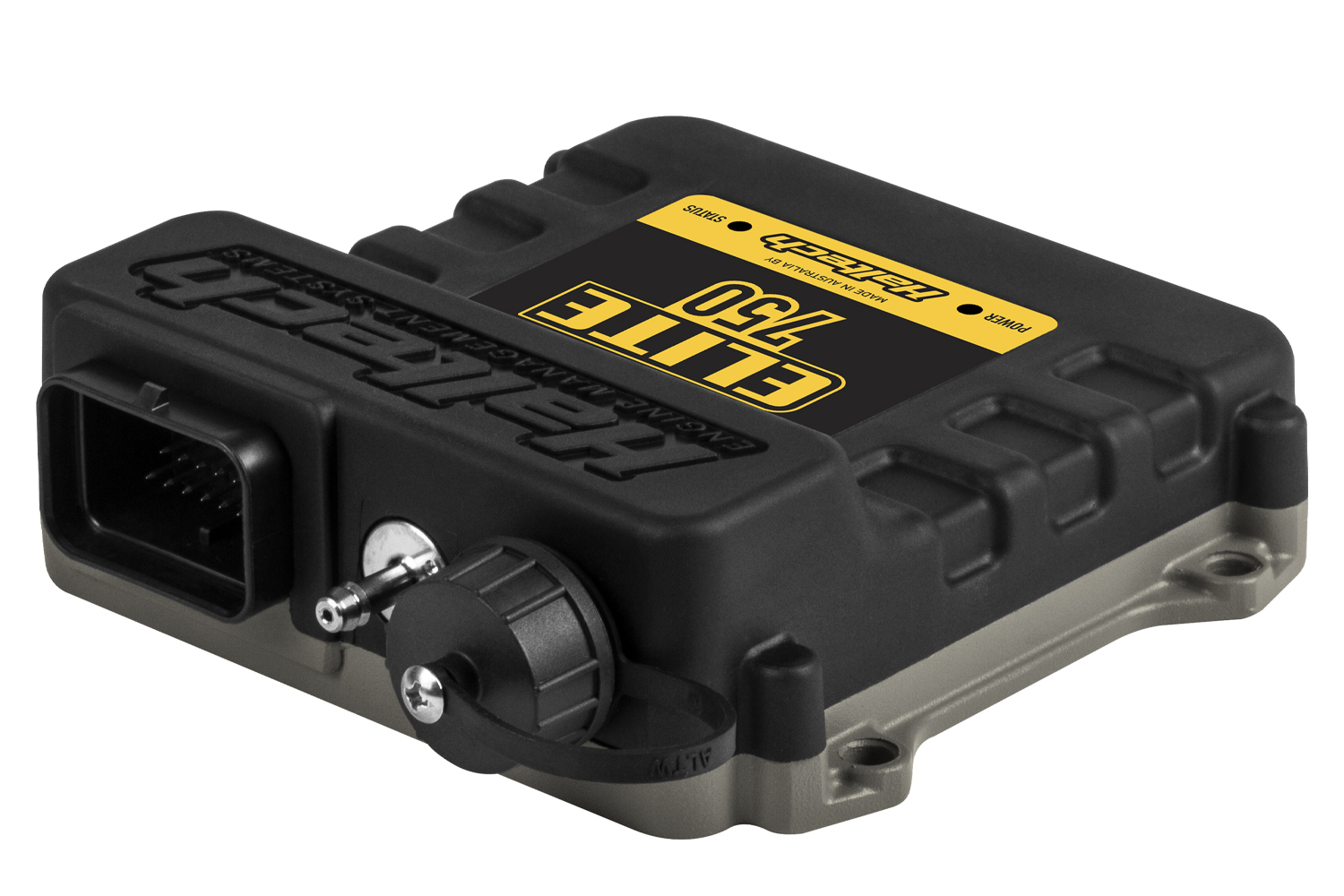

ECU Overview (Elite 750): The Elite 750 is a compact yet powerful entry-level ECU with features found in advanced models like the Elite 1500/2500. It supports 1 to 8 cylinder engines, 1 to 3 rotor engines, and offers options for normally aspirated or forced induction setups. Loaded with features such as load sensing, staged injection patterns, and compatibility with various ignition systems, the Elite 750 is housed in a waterproof case (IP67). It includes 6 fuel and 6 ignition channels, on-board data logging, and flex fuel tuning. The Elite Software Programmer (ESP) enhances user functionality.

Harness Features: When paired with a Haltech Elite ECU, the harness unlocks limitless performance modification and tuning possibilities. Features include programmable low impedance injector control, flex fuel function, closed-loop O2 control, closed-loop idle speed control, long-term learning, laptop data logging, CAN bus communication, injection stages for rotary engines, variable cam control, and advanced tuning options.

Advanced Tuning:

• Tuning Table Resolution: Up to 16 x 32
• Tuning Flexibility: Combines 3D tuning tables, per-cylinder compensations, and user-definable corrections
• Per Cylinder Tuning Correction: 3D
• Wideband O2: Connect up to 2 channels via CAN expansion devices
• Thermocouples/EGT: Connect up to 12 channels via external CAN expansion devices
• Nitrous Control: Advanced programming for wet or dry nitrous kits with on/off delays
• Boost Control: Intelligent 3D open-loop with flexible user-definable axis and 6 fully user-definable corrections modes.

Haltech’s Universal Wire-in Harness paired with the Elite 750 ECU offers a comprehensive solution for race cars and custom engine setups, providing advanced tuning capabilities in a user-friendly package.
